Fill

The Fill module provides GPU-accelerated operations for filling images.

Solid Colors

Fill an entire image with a solid color.

Example:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.color(img, (1.0, 0.0, 0.0, 1.0))
save(img, 'output.png')

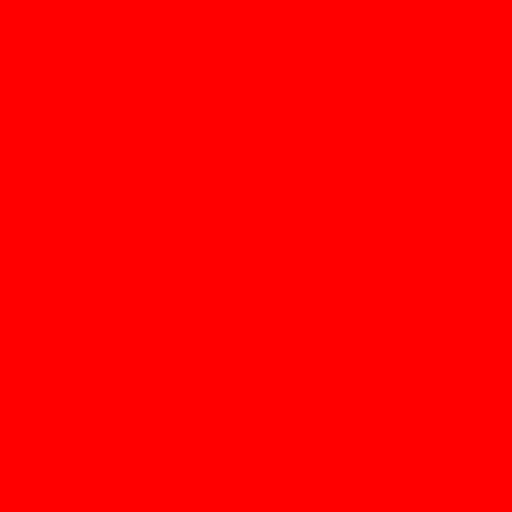

Solid color fill

Parameters:

  • image (Image): Target image to fill
  • rgba (tuple[float, float, float, float]): Color in RGBA format (0.0 to 1.0 range)

Gradients

Fill an image with a smooth gradient between two colors.

Example - Horizontal Gradient:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.gradient(
    img,
    rgba1=(1.0, 0.0, 0.0, 1.0),  # Red
    rgba2=(0.0, 0.0, 1.0, 1.0),  # Blue
    direction='horizontal'
)
save(img, 'output.png')

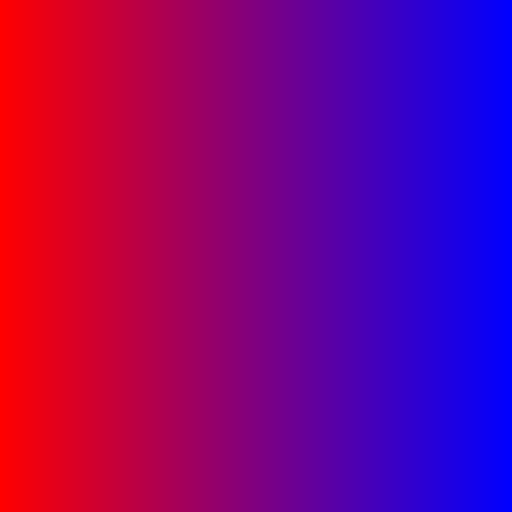

Horizontal gradient

Example - Radial Gradient:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.gradient(
    img,
    rgba1=(1.0, 0.0, 0.0, 1.0),  # Red
    rgba2=(0.0, 0.0, 1.0, 1.0),  # Blue
    direction='radial'
)
save(img, 'output.png')

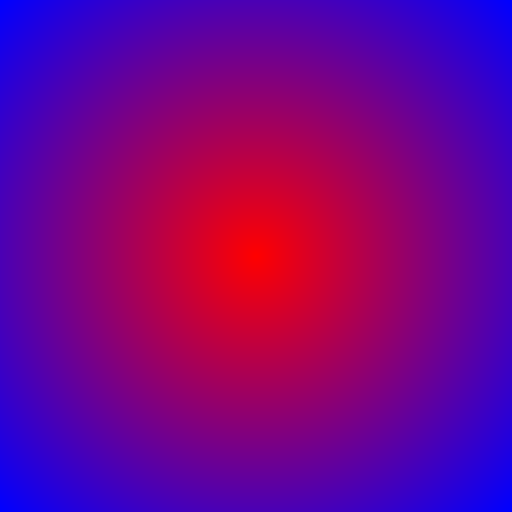

Radial gradient

Parameters:

  • image (Image): Target image to fill
  • rgba1 (tuple[float, float, float, float]): Start color (0.0 to 1.0 range)
  • rgba2 (tuple[float, float, float, float]): End color (0.0 to 1.0 range)
  • direction (str): Gradient direction - 'horizontal', 'vertical', 'diagonal', or 'radial'
  • seamless (bool): If True, gradient wraps smoothly for tiling (default: False)

Example - Seamless Texture:

from pyimagecuda import Image, Fill, save

texture = Image(512, 512)
Fill.gradient(
    texture,
    rgba1=(0.8, 0.6, 0.4, 1.0),
    rgba2=(0.4, 0.3, 0.2, 1.0),
    direction='diagonal',
    seamless=True
)
save(texture, 'output.png')

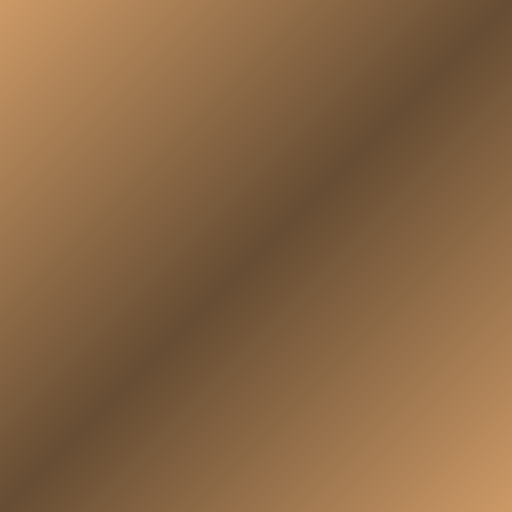

Seamless gradient

Checkerboard

Fill an image with a checkerboard pattern.

Example:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.checkerboard(
    img,
    size=40,
    color1=(0.9, 0.9, 0.9, 1.0),
    color2=(0.4, 0.4, 0.4, 1.0)
)
save(img, 'output.png')

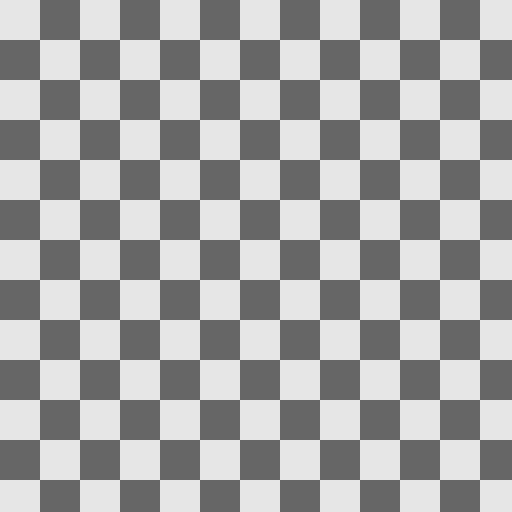

Checkerboard pattern

Parameters:

  • image (Image): Target image to fill
  • size (int): Size of each checker square in pixels (default: 20)
  • color1 (tuple[float, float, float, float]): First checker color (default: light gray)
  • color2 (tuple[float, float, float, float]): Second checker color (default: medium gray)
  • offset_x (int): Horizontal offset in pixels (default: 0)
  • offset_y (int): Vertical offset in pixels (default: 0)

Grid

Fill an image with a grid pattern.

Example:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.grid(
    img,
    spacing=50,
    line_width=2,
    color=(1.0, 1.0, 1.0, 1.0),
    bg_color=(0.2, 0.2, 0.2, 1.0)
)
save(img, 'output.png')

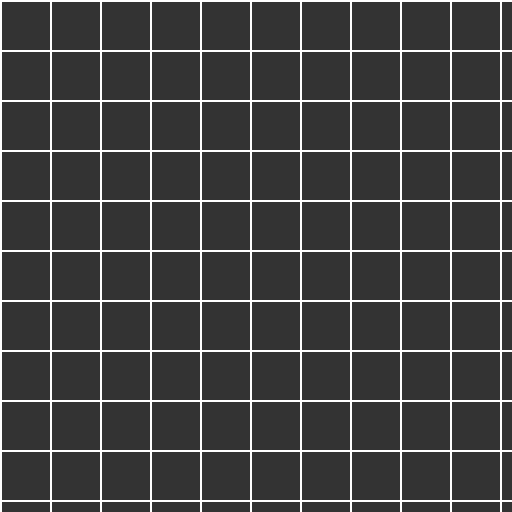

Grid pattern

Parameters:

  • image (Image): Target image to fill
  • spacing (int): Distance between grid lines in pixels (default: 50)
  • line_width (int): Width of grid lines in pixels (default: 1)
  • color (tuple[float, float, float, float]): Grid line color (default: gray)
  • bg_color (tuple[float, float, float, float]): Background color (default: transparent)
  • offset_x (int): Horizontal offset in pixels (default: 0)
  • offset_y (int): Vertical offset in pixels (default: 0)

Stripes

Fill an image with alternating stripes with anti-aliasing.

Example:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.stripes(
    img,
    angle=45.0,
    spacing=40,
    width=20,
    color1=(1.0, 0.8, 0.0, 1.0),
    color2=(0.0, 0.4, 0.8, 1.0)
)
save(img, 'output.png')

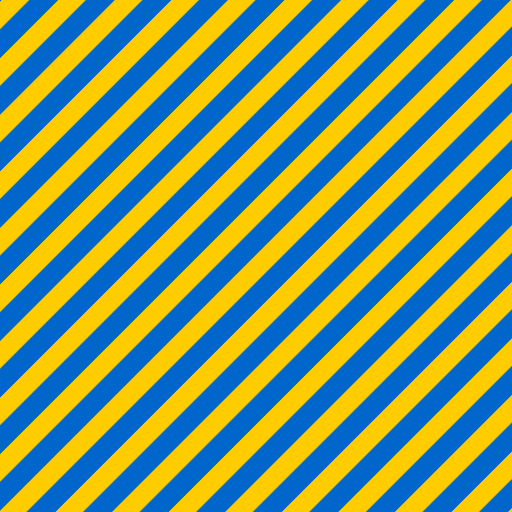

Striped pattern

Parameters:

  • image (Image): Target image to fill
  • angle (float): Rotation angle in degrees (default: 45.0)
  • spacing (int): Distance between stripes in pixels (default: 40)
  • width (int): Width of each stripe in pixels (default: 20)
  • color1 (tuple[float, float, float, float]): First stripe color (default: white)
  • color2 (tuple[float, float, float, float]): Second stripe color (default: transparent)
  • offset (int): Offset along stripe direction in pixels (default: 0)

Dots

Fill an image with a polka dot pattern.

Example:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.dots(
    img,
    spacing=60,
    radius=15.0,
    color=(1.0, 0.5, 0.8, 1.0),
    bg_color=(0.1, 0.1, 0.2, 1.0),
    softness=0.3
)
save(img, 'output.png')

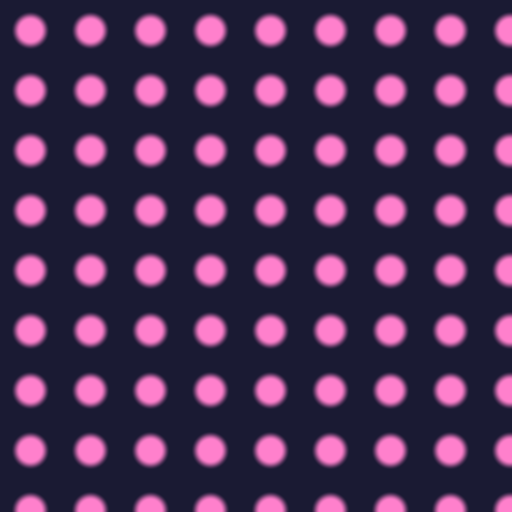

Polka dot pattern

Parameters:

  • image (Image): Target image to fill
  • spacing (int): Distance between dot centers in pixels (default: 40)
  • radius (float): Radius of each dot in pixels (default: 10.0)
  • color (tuple[float, float, float, float]): Dot color (default: white)
  • bg_color (tuple[float, float, float, float]): Background color (default: transparent)
  • offset_x (int): Horizontal offset in pixels (default: 0)
  • offset_y (int): Vertical offset in pixels (default: 0)
  • softness (float): Edge softness - 0.0 for hard edges, 1.0 for soft glow (default: 0.0)

Circle

Fill an image with a centered circle fitted to the image size.

Example:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.circle(
    img,
    color=(0.0, 0.8, 1.0, 1.0),
    bg_color=(0.05, 0.05, 0.1, 1.0),
    softness=0.0
)
save(img, 'output.png')

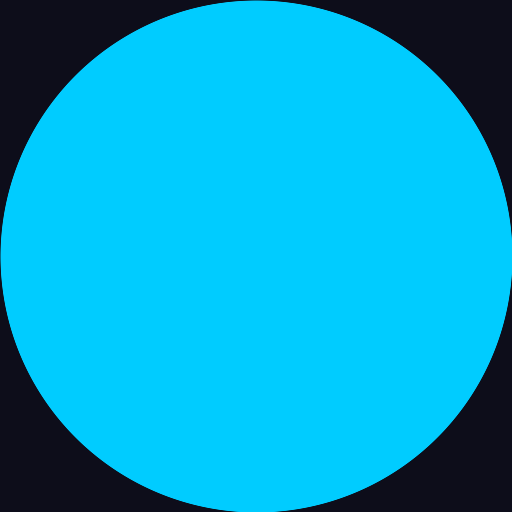

Circle fill

Parameters:

  • image (Image): Target image to fill
  • color (tuple[float, float, float, float]): Circle color (default: white)
  • bg_color (tuple[float, float, float, float]): Background color (default: transparent)
  • softness (float): Edge softness - 0.0 for hard edges with AA, >0.0 for soft gradient (default: 0.0)

Noise

Fill an image with random white noise.

Example - Monochrome Noise:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.noise(
    img,
    seed=42.0,
    monochrome=True
)
save(img, 'output.png')

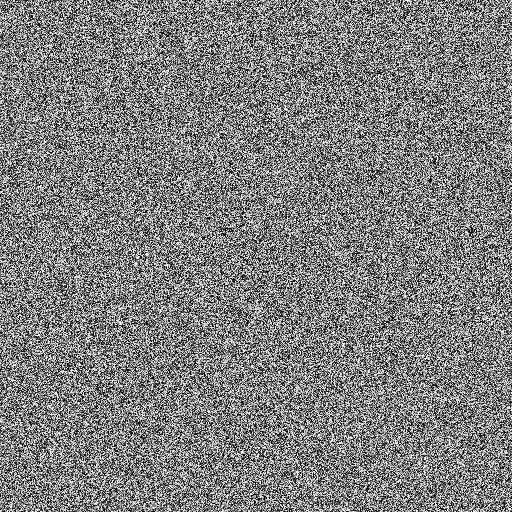

Monochrome noise

Example - RGB Noise:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.noise(
    img,
    seed=42.0,
    monochrome=False
)
save(img, 'output.png')

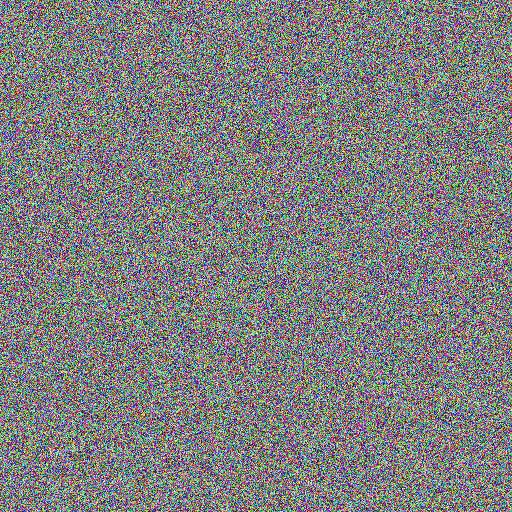

RGB noise

Parameters:

  • image (Image): Target image to fill
  • seed (float): Random seed - change this to animate the noise (default: 0.0)
  • monochrome (bool): True for grayscale noise, False for RGB noise (default: True)

Perlin Noise

Fill an image with Perlin noise (gradient noise) for natural-looking textures.

Example - Simple Perlin:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.perlin(
    img,
    scale=80.0,
    seed=0.0,
    octaves=1
)
save(img, 'output.png')

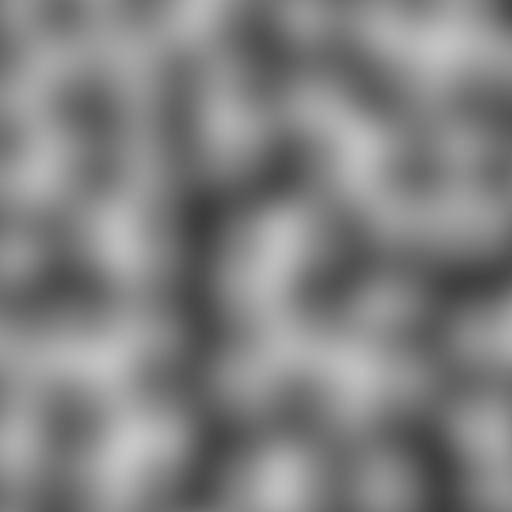

Simple Perlin noise

Example - Detailed Perlin:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.perlin(
    img,
    scale=100.0,
    seed=42.0,
    octaves=6,
    persistence=0.5,
    lacunarity=2.0,
    color1=(0.1, 0.2, 0.4, 1.0),
    color2=(0.9, 0.8, 0.6, 1.0)
)
save(img, 'output.png')

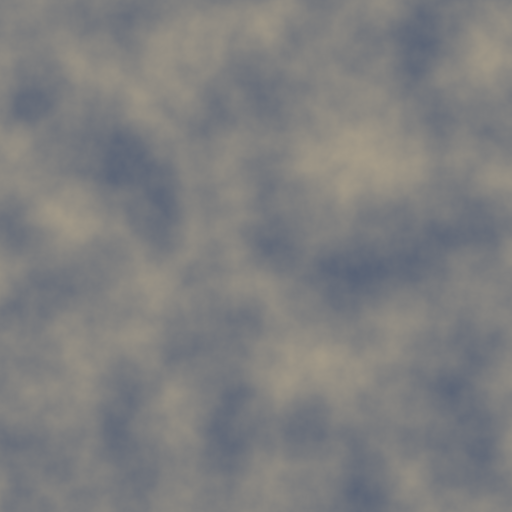

Detailed Perlin noise

Parameters:

  • image (Image): Target image to fill
  • scale (float): "Zoom" level - higher values create bigger features (default: 50.0)
  • seed (float): Random seed for variation (default: 0.0)
  • octaves (int): Detail layers - 1 for smooth, 6+ for detailed/rocky appearance (default: 1)
  • persistence (float): How much each octave contributes, from 0.0 to 1.0 (default: 0.5)
  • lacunarity (float): Detail frequency multiplier, usually 2.0 (default: 2.0)
  • offset_x (float): Horizontal offset (default: 0.0)
  • offset_y (float): Vertical offset (default: 0.0)
  • color1 (tuple[float, float, float, float]): Low value color (default: black)
  • color2 (tuple[float, float, float, float]): High value color (default: white)

N-gon

Fill an image with a regular polygon (triangle, pentagon, hexagon, etc.).

Example - Triangle:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.ngon(
    img,
    sides=3,
    color=(1.0, 0.3, 0.3, 1.0),
    bg_color=(0.1, 0.1, 0.1, 1.0),
    rotation=0.0,
    softness=0.0
)
save(img, 'output.png')
Triangle

Example - Hexagon with Glow:

from pyimagecuda import Image, Fill, save

img = Image(512, 512)
Fill.ngon(
    img,
    sides=6,
    color=(0.2, 0.8, 1.0, 1.0),
    bg_color=(0.05, 0.05, 0.15, 1.0),
    rotation=30.0,
    softness=0.0
)
save(img, 'output.png')

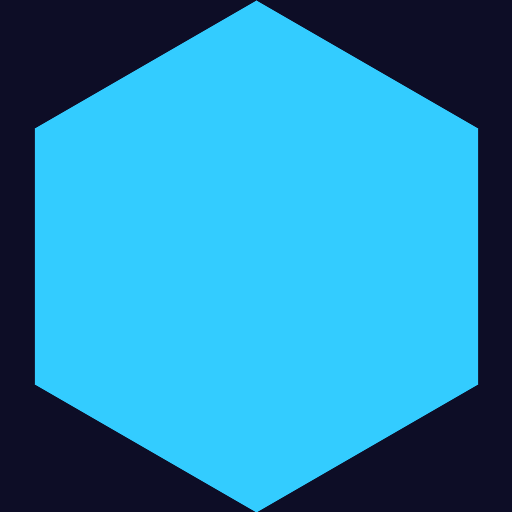

Hexagon with glow

Parameters:

  • image (Image): Target image to fill
  • sides (int): Number of sides (must be 3 or more) (default: 3)
  • color (tuple[float, float, float, float]): Polygon color (default: white)
  • bg_color (tuple[float, float, float, float]): Background color (default: transparent)
  • rotation (float): Rotation angle in degrees (default: 0.0)
  • softness (float): Edge softness - 0.0 for hard edges with AA, >0.0 for glow effect (default: 0.0)
