Images & Plots

Return PIL Images and Matplotlib figures from your functions. They're automatically displayed in the UI.

PIL Images

Return PIL/Pillow Image objects and they'll be displayed automatically:

from func_to_web import run
from func_to_web.types import ImageFile
from PIL import Image, ImageFilter

def blur_image(image: ImageFile, radius: int = 5):
    img = Image.open(image)
    return img.filter(ImageFilter.GaussianBlur(radius))

run(blur_image)

Any PIL Image operation works: filters, transformations, drawing, etc.

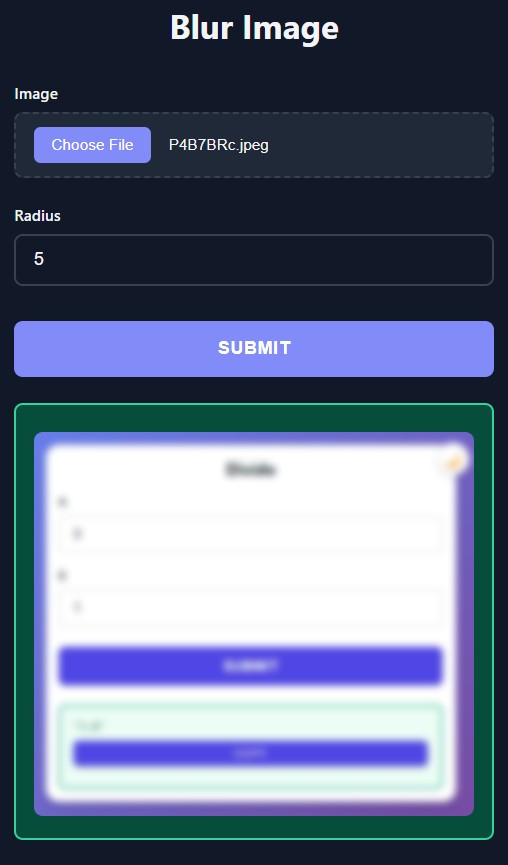

Image Processing

Matplotlib Plots

Return Matplotlib Figure objects and they'll be rendered as images:

from func_to_web import run
import matplotlib.pyplot as plt
import numpy as np

def plot_sine(frequency: float = 1.0, amplitude: float = 1.0):
    x = np.linspace(0, 10, 1000)
    y = amplitude * np.sin(frequency * x)

    fig, ax = plt.subplots(figsize=(10, 6))
    ax.plot(x, y)
    ax.grid(True)
    return fig

run(plot_sine)

Works with any Matplotlib plot type: line, bar, scatter, histograms, etc.

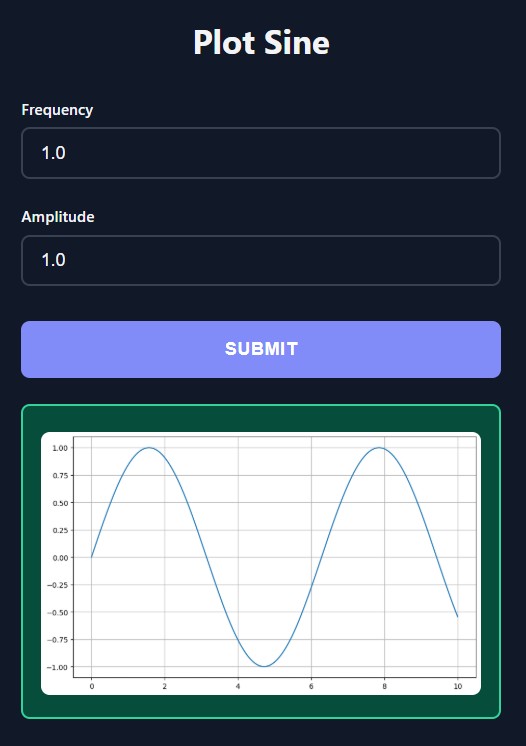

Plot Result

How It Works

  • PIL Images: Automatically detected and displayed in the UI
  • Matplotlib Figures: Rendered as PNG and shown in the browser
  • No configuration needed: Just return the object from your function
  • Works with any image processing or plotting library that returns these types

Next Steps
